Kraftmeister hydropneumatic presses 20 ton

SKU: KR7236010
Kraftmeister hydropneumatic presses 20 ton

green-check In stock

green-truck 5 - 10 workdays

Stay in touch

Sadly this product isn't in stock at the moment. Leave your information and get notified as soon as the product is back in stock.

wrench Recommended accessories
  • Exclusive dealer of Kraftmeister and George Tools
  • Largest range of workshop equipment in Europe
  • All products can be viewed in our XXL showroom
  • Professional advice from our product experts
  • Our customers rate us with an average of 9

Pros and cons

According to our expert Victor
  • Operation via pedal or lever
  • Bed is adjustable in height
  • Including a monometer
  • Available in one colour only

Product description

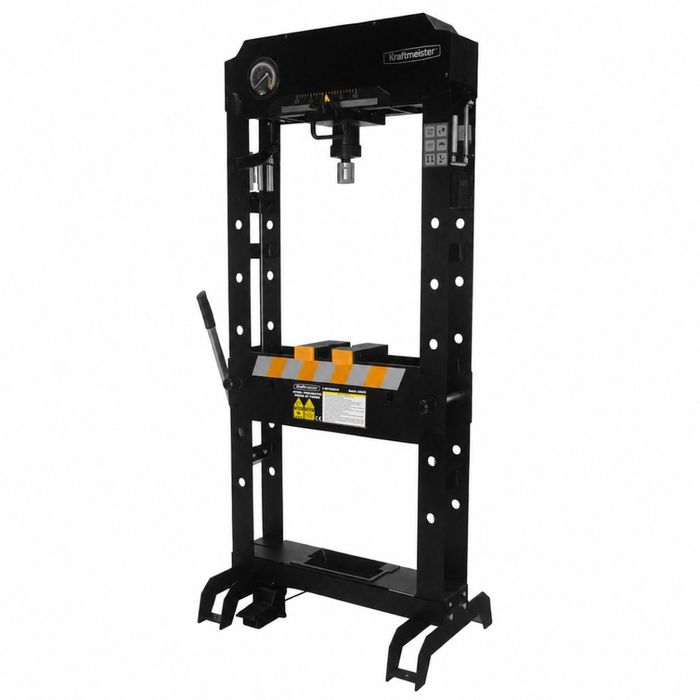

The Kraftmeister 20-ton hydropneumatic workshop press is highly suitable for installing bearings, bolts, and axles.

The press can be operated both hydraulically and pneumatically. Pneumatic operation is done through the foot pedal, allowing you to use air pressure to quickly and effectively position the press where desired. Subsequently, by manually operating the press with the lever, you can work with great precision and apply more pressure.


  • High-quality steel frame construction through laser cutting and welding
  • Equipped with industrial-grade seals and oil
  • Height-adjustable bed through built-in hand winch
  • Cylinder position adjustable in width
  • Cylinder height adjustable through threaded spindle
  • High precision and power due to hydraulic control
  • Removable storage/collection tray integrated into the base
  • Clear pressure gauge for precise pressure application
  • Ergonomic handle
  • Dust flaps to conceal the pump and reservoir, providing easy access and maintenance at the same time


This Kraftmeister 20-ton hydraulic workshop press comes with:

  • An 8-piece set of press pins, providing better control during precision work
  • A 2-piece press block set, reversible and with locking
  • A foot pedal with EURO NW7.2 male compressed air connection

Product specifications

Dimensions (LxWxH) 77 x 50,5 x 180 cm
Delivery time 5 - 10 workdays
Brand Kraftmeister
Implementation Hydropneumatic
Max. capacity 20 ton
Working range 25 - 850 mm
Stroke 145 - 220 mm
Bed depth 15,2 cm
Bed width 60 cm
EAN 8720812822851
Weight 132 kg
